Plotter de corte Summa S3 T75

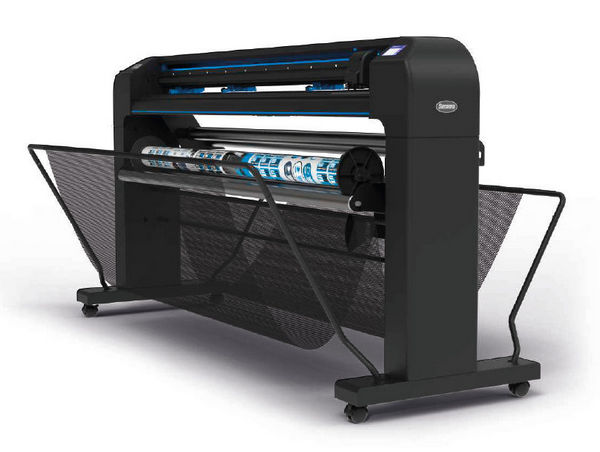

Summa S3 T75 Cutting Plotter: Contour Cutting at its Best

The Summa S3 T line combines S Class strength and precision with the latest TrueTangential cutting head. Along with an amazing array of built-in innovations and capabilities, this cutting plotter offers much more than any other cutting plotter in its class.

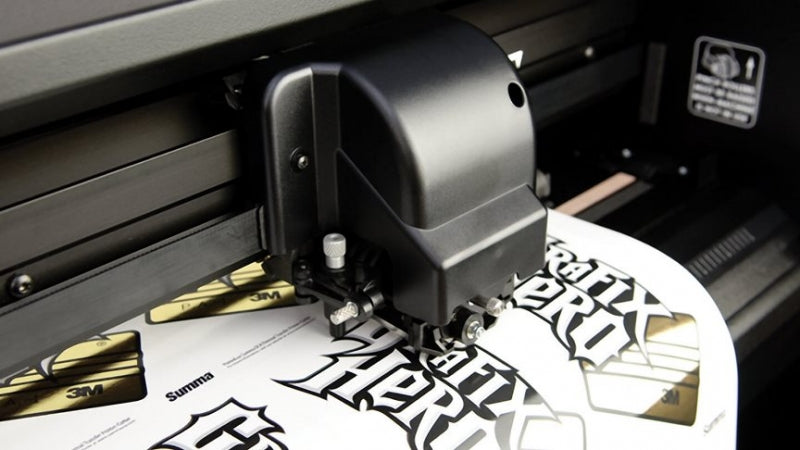

Tangential Cutting Head

With computer-controlled knife rotation and up to 600 grams of cutting force, Summa's T-line combines the precision of a flatbed cutter with the ease and speed of a roll cutter by utilizing our legendary and true tangential cutting head. The T-range simply cuts with more force and precision than any cutting plotter in its class.

The S3™ tangential and drag knife cutting plotters offer higher quality engineering and more advanced technology to deliver longer contour cutting accuracy for printed graphics.

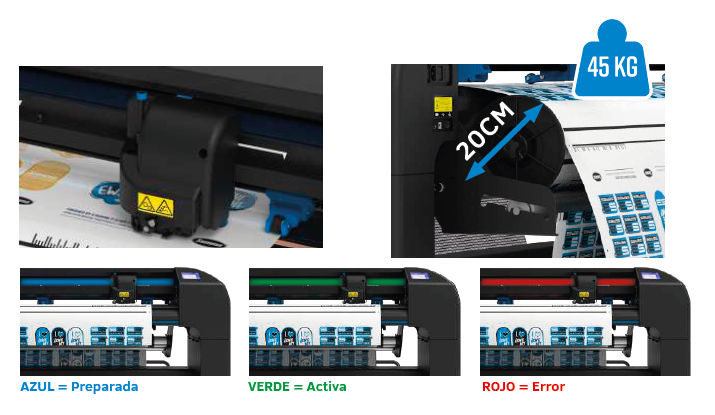

Legendary Material Tracking

The Summa S3 T75 Cutting Plotter's MicroSprocket drive drum is Summa's exclusive design, which, along with powerful servo motors, delivers astonishing accuracy. The material is conditioned as it advances to ensure maximum material tracking precision.

OPOS Contour Cutting Alignment

The OPOS contour cutting alignment system is an abbreviation for 'Optical Positioning System'. OPOS X sensor technology detects a minimum of 4 marks and a maximum of 128 marks on a wide range of materials. Some of its features include a fully automated workflow, using OPOS barcodes, which allows you to contour multiple jobs without intervention on this Summa S3 T75 Cutting Plotter.

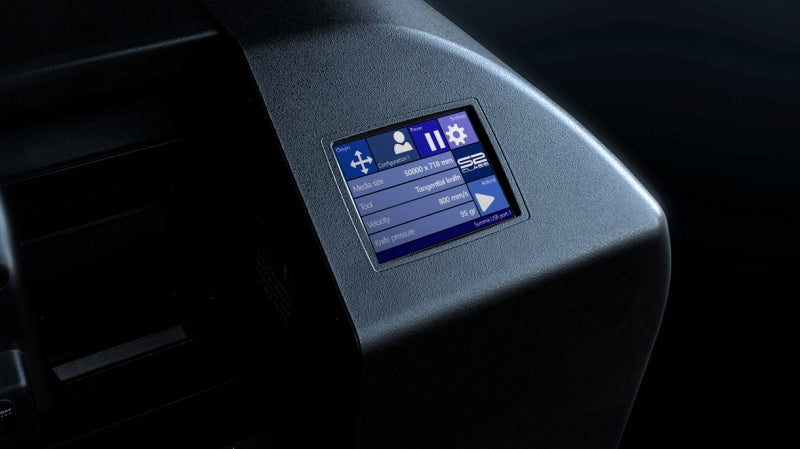

Vibrant Color Touchscreen

The intuitively designed menu system and full-color touch interface allow for easy navigation. Tactile and user-friendly, the touchscreen displays large amounts of information in an easily accessible format.

Unparalleled Die-Cutting Accuracy

Summa's unique cutting feature, FlexCut, takes cutting technology to the next level. This adjustable feature creates a perforated cut that allows the material to retain the necessary rigidity for material transport through the cutting plotter, while still being easy to break into individual pieces.

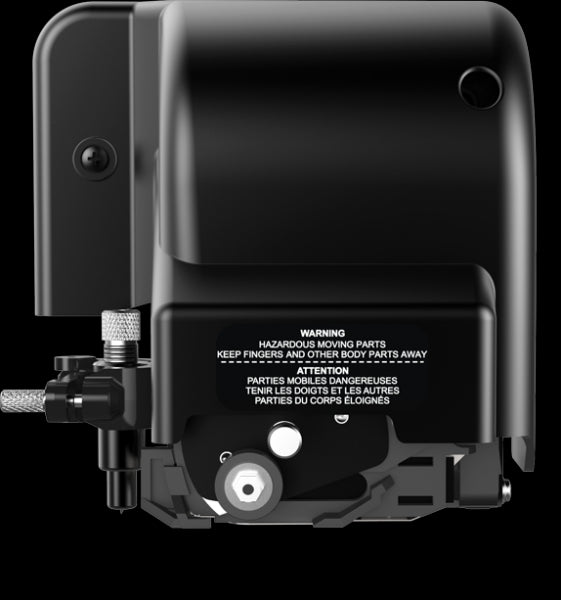

Automatic End-of-Job Knife

The cutting head includes an automatic end-of-job knife, which can be configured to cut your materials at the end of the job.

Ethernet Connectivity

Multiple computers can now control a unit over a network or a cross-over cable can be used for a direct connection - creating a platform for faster communication and data transmission speeds.
